FERROMAGNETIC INCIDENT LOG MANAGER


Ferromagnetic Detector

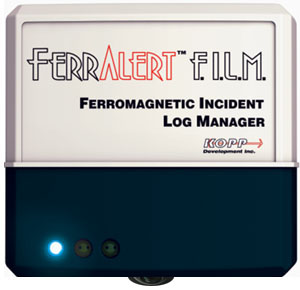

FerrAlert™ F.I.L.M. - Ferromagnetic Incident Log Manager provides An Automatic Data Record
of Ferromagnetic Objects entering the MRI Scanner Room


Provides a Continuous and Automatic Visual Record of Potential and Actual Projectile Incidents together with actions taken after the incident. In addition, it is a great tool to assist with internal Root Cause Analysis. FerrAlert™ F.I.L.M. is now available as an accessory to the FerrAlert™ HALO II PLUS detector. This patent pending logging device was designed specifically with the new The Joint Commission standards in mind.

Download Brochure »

MRI_Safety_Requirement

ADVANCED TECHNOLOGY


Date and time stamp incident logging allows easy access to visual data related to a specific incident. Being able to go back in time to see what led up to an incident is a great feature which will help facilities to analize the incidents and prevent them in the future.

Advance Computer System allows future software enhancement and easy access to multiple channels.

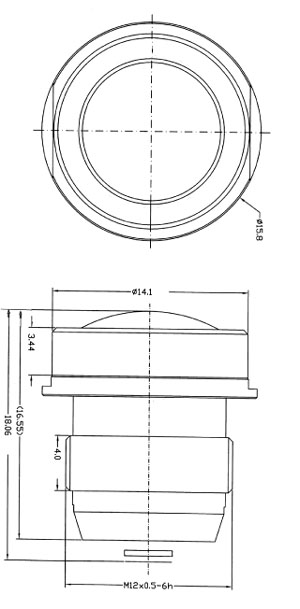

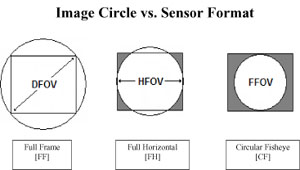

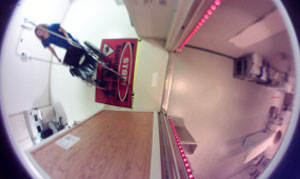

Fisheye Lens technology allows to records the entire MRI environment



ferralert_film

F.I.L.M. FUNCTIONALITY


VISUAL ADVANCE PRE-WARNING

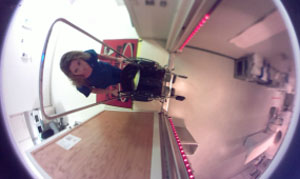

All 48 red alarm lights of FerrAlert™ HALO II PLUS are activated on the approach of a ferromagnetic wheelchair WELL OUTSIDE scanner room. No Audio alarm sounds at this time.

ferralert_film


AUDIO ALARM AND F.I.L.M. ARE ACTIVATED

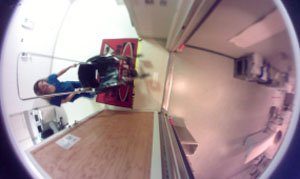

When the Photoelectric sensor of the FerrAlert™ HALO II PLUS is crossed, the F.I.L.M. stores the images that lead up to the activation. F.I.L.M. continues to take and store images after the incident occurs to document actions after the incident.

ferralert_film


PROJECTILE THREAT PINPOINTED
In this image, both bottom sensors are activated indicating that the area of the threat is near the floor and ferromagnetic. The location feature allows determination of the position of ferromagnetic objects for post incident data analysis.

ferralert_film


ACTION TAKEN AFTER INCIDENT

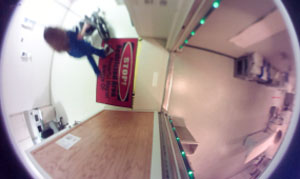

The person did not continue into the scanner room, but instead turned around and the left the area. The green READY lights illuminate indicating that there is no approaching ferromagnetic threat.

ferralert_film



UNIQUE FEATURES


LOGS POTENTIAL AND ACTUAL PROJECTILE INCIDENTS


PROVIDES A VISUAL RECORD OF THE EVENTS LEADING UP TO THE INCIDENT


PROVIDES A VISUAL RECORD OF THE ACTIONS AFTER THE INCIDENT


ALL RECORDS OF INCIDENTS ARE DATE AND TIME STAMPED


SIMULTANEOUS VIEWING INSIDE THE MRI SCANNER ROOM


ASSISTS WITH ROOT CAUSE ANALYSIS


FACILITATES THE JOINT COMMISSION COMPLIANCE FOR INCIDENT LOGGING


PATENT PENDING


HIPAA COMPLIANT


TECHNICAL SPECIFICATIONS


Dimensions:
Height 3.153” (80.09 mm), Width 3.951” (100.36 cm), Depth 3.830” (97.29 mm)

Mounting:
Mounts on FerrAlert™ HALO PLUS Portal II
or Separate Mounting Bracket
(when FerrAlert is Inside MRI Room)

Complies with IEC 60601-1:2005 Medical Device Specification Requirements

Medical Power Supply:
100 to 240 VAC, 47 to 63 Hz, 25 Watts


JCAHO COMPLIANCE






NEW REQUIREMENT by The Joint Commission

FerrAlert™ F.I.L.M. - Ferromagnetic Incident Log Manager is the ONLY automatic logging device to help MRI providers to comply with The New Joint Commission standards

A Continuous and Automatic Visual Record of Potential and Actual Projectile Incidents. Provides a visual record of the actions after the incident. Assists with Root Cause Analysis)




Ferromagnetic_Detector
FerrAlert™ Halo II

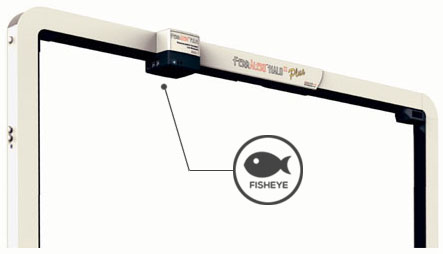

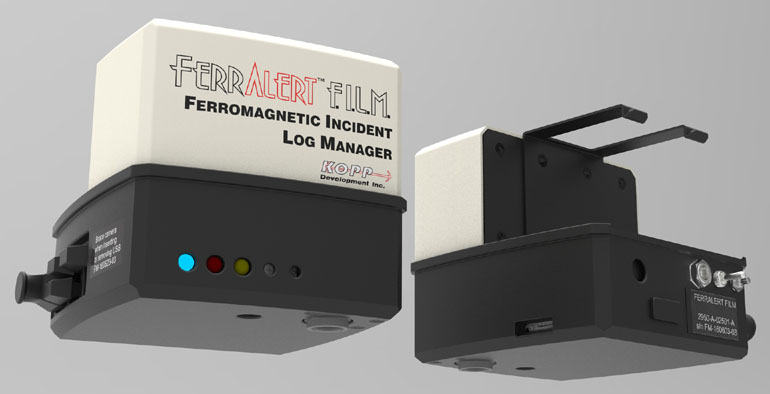

FerrAlert™ F.I.L.M. Module

Front and back views

Ferromagnetic_Detector
FerrAlert™ Halo II
FerrAlert™ F.I.L.M. Camara View

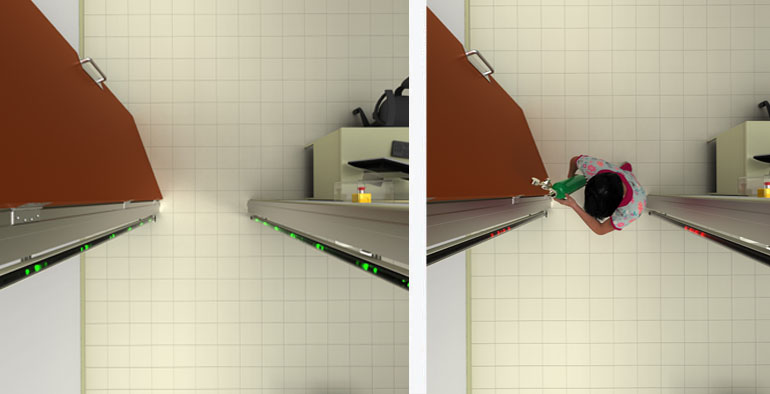

View from top of standby and alarm mode

Ferromagnetic_Detector
FerrAlert™ Halo II
FerrAlert™ F.I.L.M.

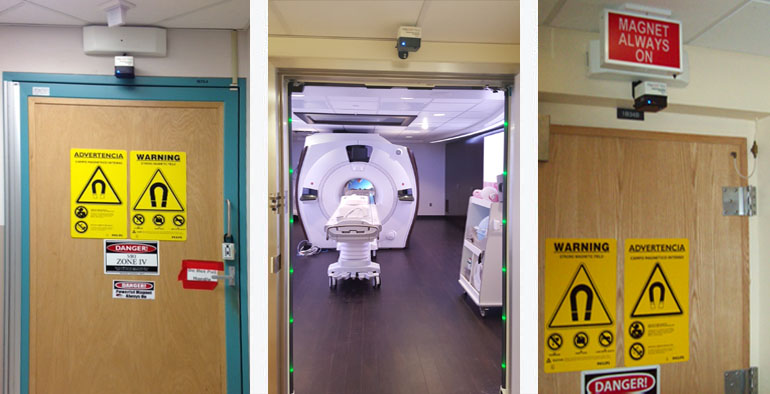

Examples of installations on on-swinging doors
